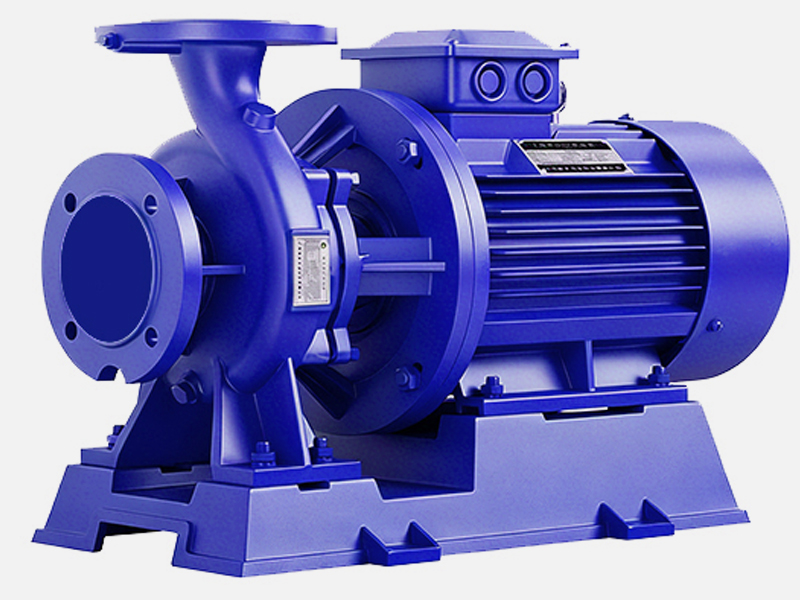

Horizontal Single-Stage Centrifugal Pump
HRZL-ISW1 series horizontal single - stage centrifugal pump uses the performance parameters of domestic general centrifugal pumps and is self - developed as a new - generation energy - saving and eco - friendly horizontal centrifugal pump. It includes HRZLISW(R) water pumps, HRZLISW(H) corrosion - resistant chemical pumps, and HRZLISW(B) oil pumps. This pump series offers excellent performance, high reliability, long service life, reasonable structure, and an attractive appearance.
304 stainless steel oil-immersed design improves insulation and reduces the risk of leakage.
Thickened cast iron shell, electrophoretic spray paint on the inner surface, special anti-rust treatment.
Precise filtering holes, effectively blocking debris and protecting the motor.
Thickened cast aluminum material, large diameter, large flow.
Durable handle, better waterproof effect, corrosion resistance, friction resistance, long-term use without breaking
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 47.9-120m³/h | 10.3-133m | 7.5-75KW | 1450-2900r/min |
| 6inch | 105-240m³/h | 10.7-53m | 11-45KW | 1450r/min |
| 8inch | 182-460m³/h | 19.4-37m | 30-55KW | 1450r/min |
| 10inch | 340-760m³/h | 22.6-41m | 75-110KW | 1450r/min |
| 12inch | 540-1200m³/h | 37.7-53.5m | 160-250KW | 1450r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
