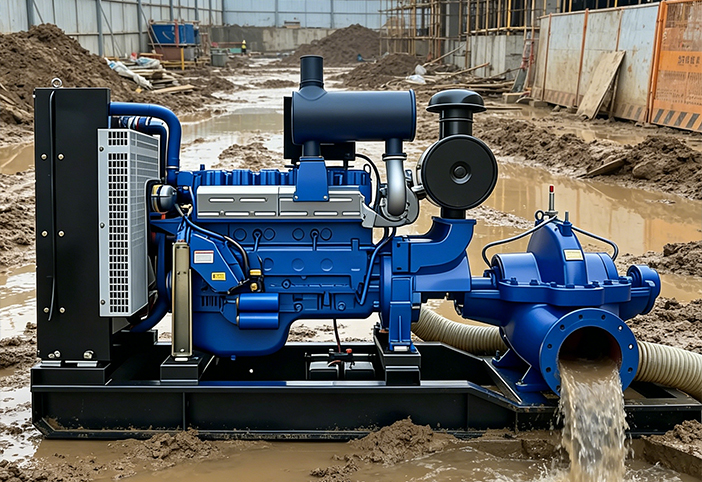

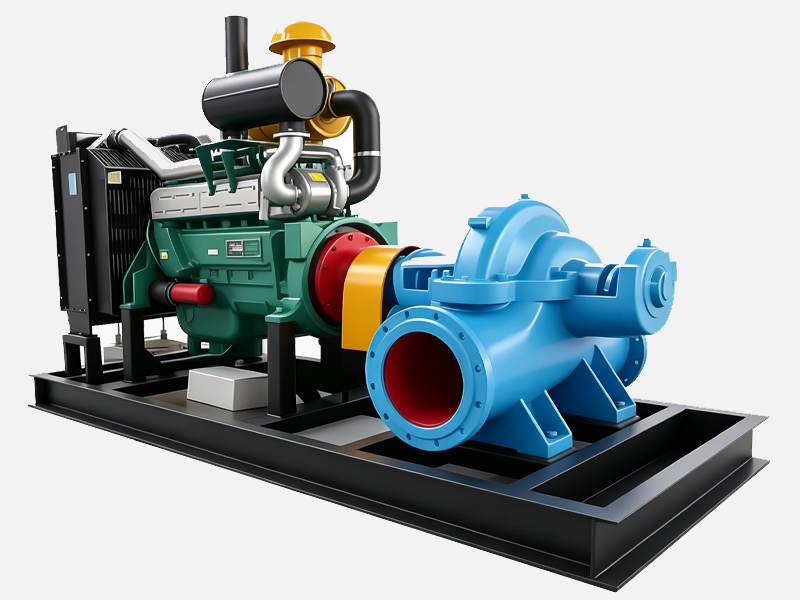

Diesel Double Suction Split Pump Set
HRZL-XBD-G-SN horizontal double-suction split case centrifugal pump is developed by our company with the introduction of international advanced technology and combined with high-quality water conservancy models. It is a new standard series of energy-saving products. This pump is suitable for conveying clean water and non-corrosive liquids, and can be driven by electric motors or diesel engines.
UL Listed/FM Approved/NFPA-20 Design
Comply with ISO2548C, GB3216C and GB/T5657 standards.
Double suction impeller design is adopted to minimize axial force and ensure optimal performance through CAD hydraulic model.
Double volute structure significantly reduces radial force, thereby minimizing bearing stress and extending service life.
The motor and pump pipeline positions can be flexibly configured to meet the user's on-site needs.
The pump casing and impeller surface are smooth and seamless, with anti-cavitation performance and excellent efficiency.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 6inch | 112-180m³/h | 35-84m | 30-55KW | 2900r/min |
| 8inch | 160-351m³/h | 31-100m | 37-110KW | 2900r/min |
| 10inch | 320-576m³/h | 11-140m | 22-132KW | 1450r/min |
| 12inch | 504-972m³/h | 10-98m | 30-315KW | 1450r/min |
| 14inch | 800-1440m³/h | 10-140m | 55-710KW | 1450-1470r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.

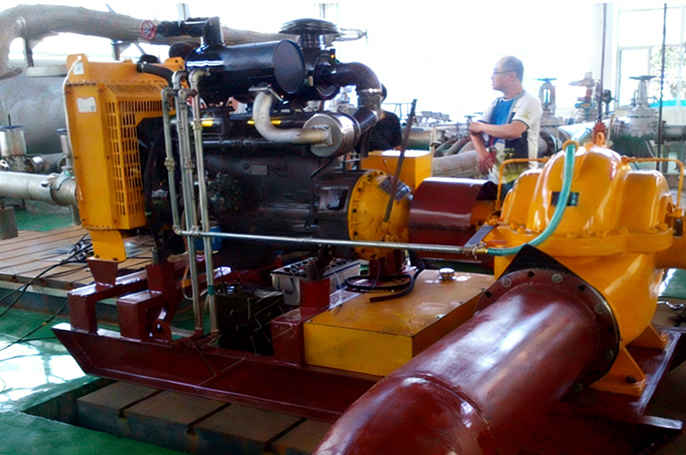

Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
Welcome, contact us!
