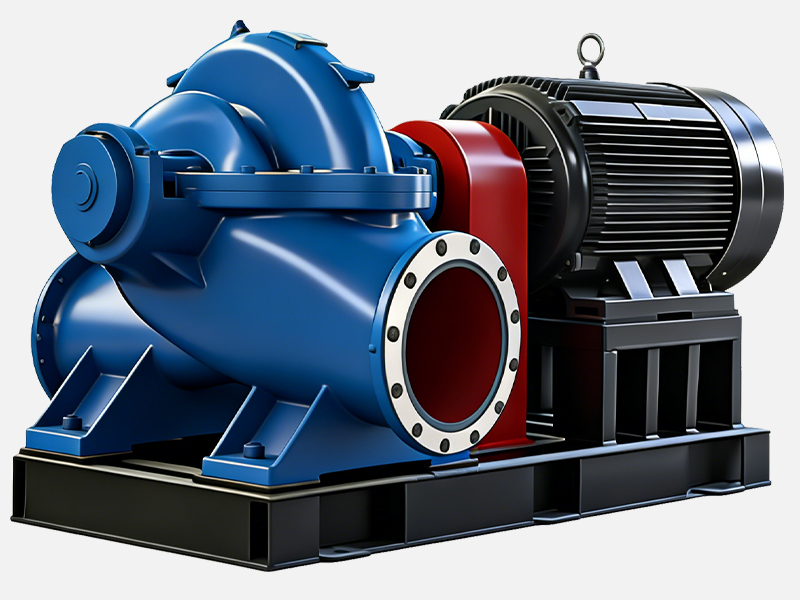

Double Suction Split Pump
HRZL-C/S horizontal double-suction split-center single-stage, double-suction, horizontal centrifugal pump is a new standard series of energy-saving products. Our company developed it by introducing world advanced technology and integrating excellent hydraulic models. It's suitable for conveying clean water and non-corrosive liquids. The driving motor can be either an electric motor or a diesel engine.
Double suction design reduces radial hydraulic thrust.
Replaceable outer shell wear ring is standard configuration.
Compact structure, beautiful appearance, smooth operation and low noise.
There are two types of shaft seals: mechanical seals and packing seals, which can be selected as needed.
The pump is directly driven by an electric motor through an elastic coupling, and can be driven by an internal combustion engine if necessary.
During maintenance, the pump cover can be opened to take out the rotor components without removing the inlet and outlet pipes.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 6inch | 112-220m³/h | 35-84m | 30-55KW | 2900r/min |
| 8inch | 160-360m³/h | 31-93.5m | 37-110KW | 2900r/min |
| 10inch | 342-612m³/h | 11-71m | 22-132KW | 1450r/min |
| 12inch | 522-935m³/h | 8.7-98m | 30-315KW | 1450r/min |
| 14inch | 826-1663m³/h | 10-140m | 55-710KW | 1450-1470r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
