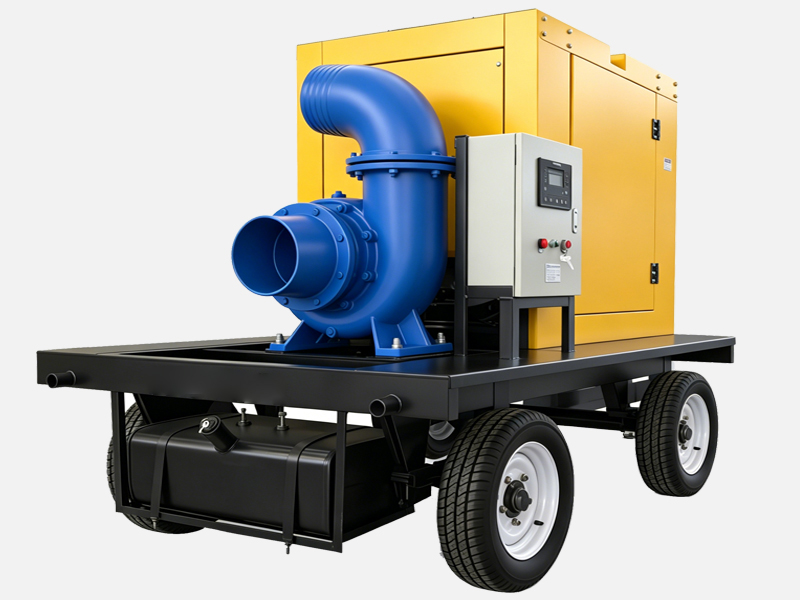

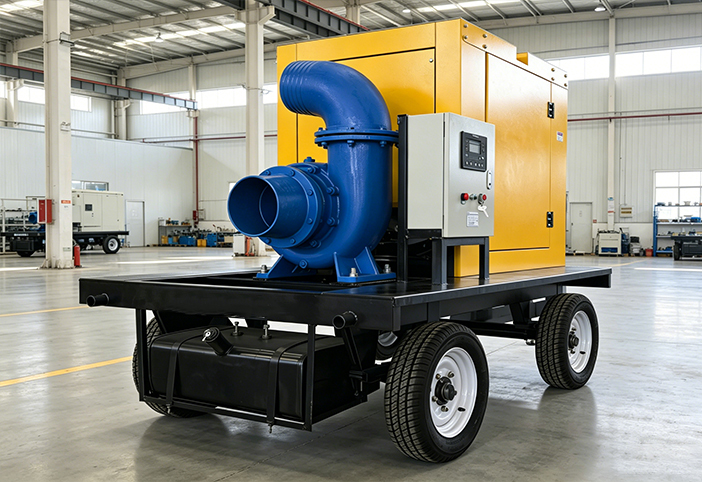

Diesel Horizontal Mixed Flow Pump
HRZL-C/HW diesel engine horizontal mixed flow pump, driven by diesel engine, is a horizontal, single-stage, single-suction volute type mixed flow pump.
It can transport clean water or liquid with similar physical and chemical properties to water, with the liquid temperature not exceeding 50℃, and is widely used in farmland irrigation, factory and urban drainage and other scenarios.
Direct-connected four-cylinder diesel engine, direct-connected electric motor, and single-cylinder diesel engine pulley drive.
Convenient and labor-saving, just turn the key to use, eliminating the laborious hand cranking.
To meet the user's outdoor water supply difficulties without power supply, the diesel engine can be directly driven.
Optional large water pump with sufficient horsepower, smooth operation and low noise.
Can be used fixedly and can be adjusted up and down.
the shell has low wear and corrosion resistance, easy operation and stable operation.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 6inch | 180-223m³/h | 5-12.5m | 4-11KW | 1450-2900r/min |
| 8inch | 360-500m³/h | 5-12.5m | 7.5-30KW | 1200-1600r/min |
| 10inch | 444-720m³/h | 5-14.3m | 11-37KW | 980-1600r/min |
| 12inch | 581-1035m³/h | 3.9-12.5m | 11-55KW | 730-1300r/min |
| 14inch | 745-1000m³/h | 4.4-8m | 15-30KW | 730-980r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
