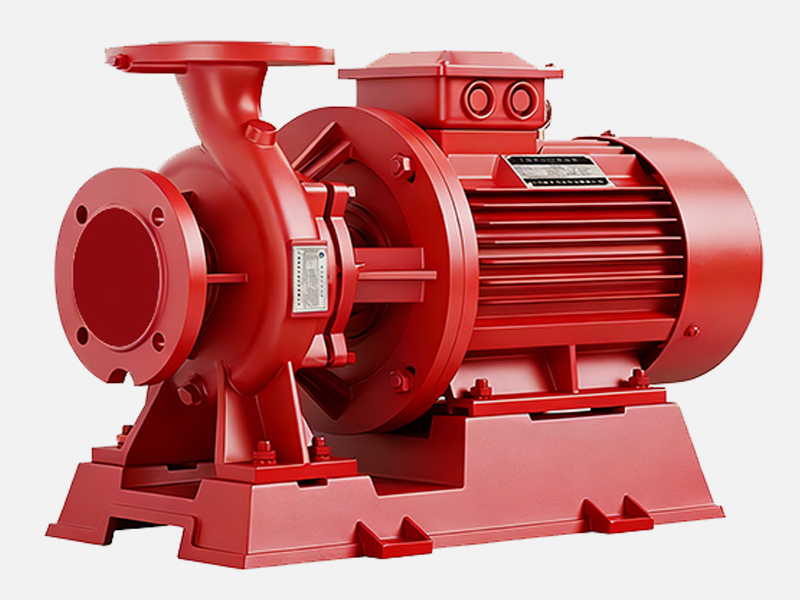

Horizontal Constant Pressure Fire Pump
XBD-G-WHY horizontal constant pressure fire pump is our company's new energy-saving product, with performance parameters and technical indicators up to standard. It has high efficiency, low noise, good cavitation resistance, reasonable structure and long life.
Mainly used for fire protection system pressurized water supply, also suitable for factory and mine enterprise water supply and drainage, high-rise building pressurized water supply, long-distance water supply, heating, bathroom, tin furnace cold and hot water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other scenes.
The use of professional CFD fluid design software improves the efficiency of the pump.
The pump shaft adopts carbide mechanical seal to solve the leakage problem of centrifugal pump, extend its service life and keep the site clean.
The motor adopts low-noise bearings, the impeller is well balanced, vibration-free, and green and environmentally friendly.
The pump and motor are coaxial to simplify the transmission structure, and the capital construction investment is reduced by 20% compared with ordinary pumps.
Installed vertically or horizontally, and can also be connected in parallel or series to increase the flow rate and stroke according to the flow rate and stroke requirements.
It is widely used in industrial/urban water supply and drainage, high-rise building pressurization, garden irrigation, fire fighting/remote water supply, etc.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 47.9-506m³/h | 10.3-133m | 7.5-75KW | 1450-2900r/min |
| 6inch | 95.4-240m³/h | 10.7-53m | 11-45KW | 1450r/min |
| 8inch | 198-420m³/h | 16.3-37m | 30-55KW | 1450r/min |
| 10inch | 340-760m³/h | 22.6-41m | 75-110KW | 1450r/min |
| 12inch | 530-1200m³/h | 21.9-43.8m | 90-162KW | 1450r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
