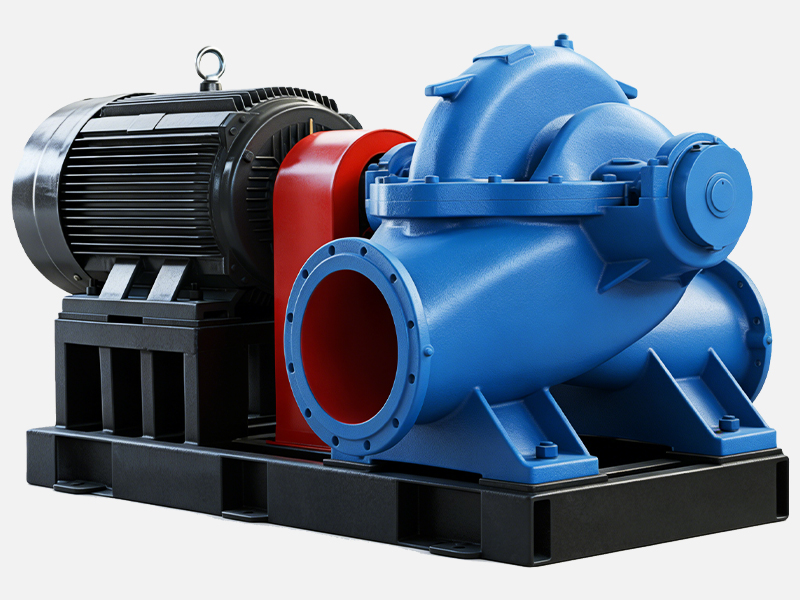

Horizontal Double Suction Split Case Pump

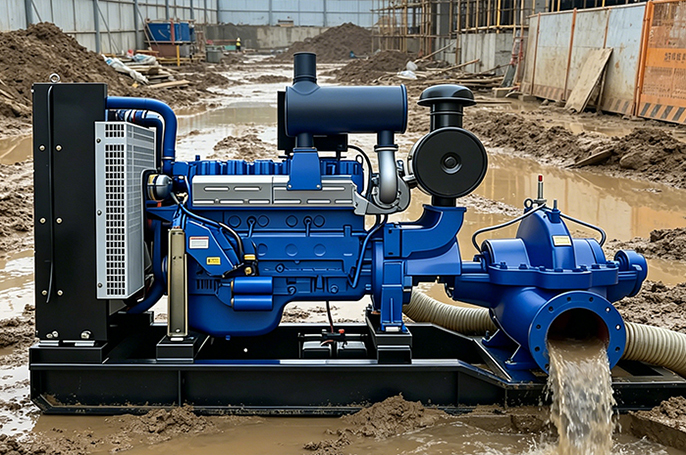

HRZL-SN horizontal double-suction split case centrifugal pump is developed by our company with the introduction of international advanced technology and combined with high-quality water conservancy models. It is a new standard series of energy-saving products. This pump is suitable for conveying clean water and non-corrosive liquids, and can be driven by electric motors or diesel engines.
The life of wearing parts can reach 8,000 hours, and it can reach 15,000 hours if special materials are used, which is better than other types of pumps.
In addition to the prototype impeller, modified impellers can also be used to adapt to different working conditions and improve efficiency.
The relative position of the motor and the inlet and outlet pipelines of the pump can be changed according to the user's on-site requirements.
The pump casing and impeller are precision cast, the surface is very smooth, with significant anti-cavitation performance and high efficiency.
When repairing, you only need to remove the pump cover to disassemble the rotor parts without interfering with the suction and discharge pipelines.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 25-326m³/h | 8.9-125m | 7.5-200KW | 1450-2900r/min |
| 6inch | 96.3-660m³/h | 9.3-121m | 15-250KW | 1450r/min |
| 8inch | 23-965m³/h | 14-167m | 37-450KW | 1450r/min |
| 10inch | 350-1450m³/h | 16-131m | 75-315KW | 1450r/min |
| 12inch | 390-2350m³/h | 9-174m | 37-1120KW | 1450r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
