Diesel Engine Long Shaft Deep Well Pump Set

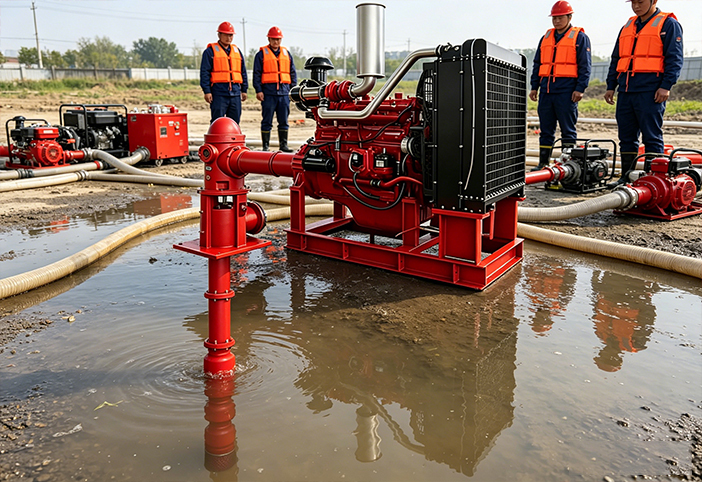

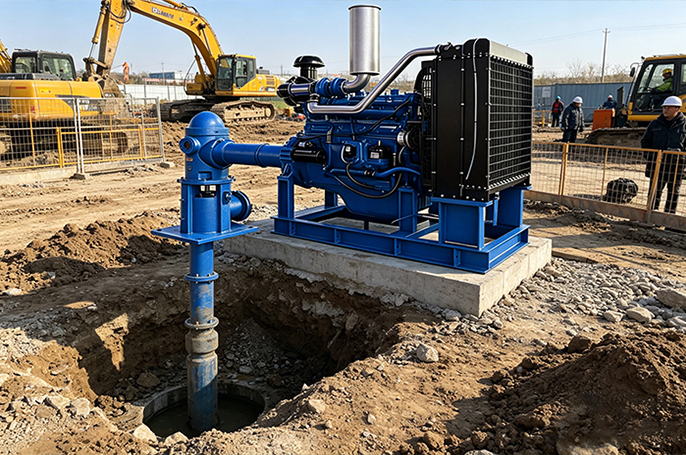

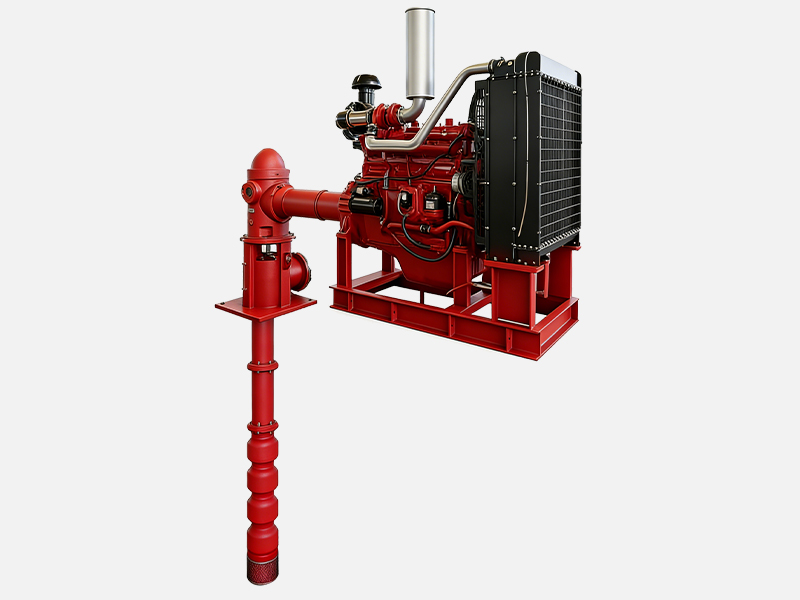

HRZL-C/IS axial flow deep well fire pump (including long shaft, vertical, diesel engine driven models) is optimized based on the original LC or OJ vertical long shaft pump. XBC-GJ diesel engine long shaft deep well pump consists of centrifugal impeller, water guide pipe, water delivery pipe, transmission shaft, pump seat, gearbox, diesel engine assembly, control cabinet, etc.
The pump seat, gearbox, and diesel engine assembly are above the wellhead. The diesel engine power is transmitted to the impeller shaft through the gearbox, concentric transmission shaft, and water lifting pipe to generate flow and pressure.
Capable of pumping water from deep wells, expanding firefighting capabilities.
Operates independently without relying on external power.
Capable of delivering large flows of water to extinguish large fires.
Made of durable materials to withstand harsh environments.
Facilitates rapid response and deployment in emergency situations.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 20-160L/S | 0.4Mpa | 17-121KW | 1450-r/min |
| 6inch | 15-160L/S | 0.6Mpa | 17-170KW | 1450-r/min |
| 8inch | 15-160L/S | 0.8Mpa | 22-231KW | 1450-r/min |
| 10inch | 15-160L/S | 1Mpa | 30-308KW | 1450-r/min |
| 12inch | 15-160L/S | 1.2Mpa | 38-330KW | 1450-r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
