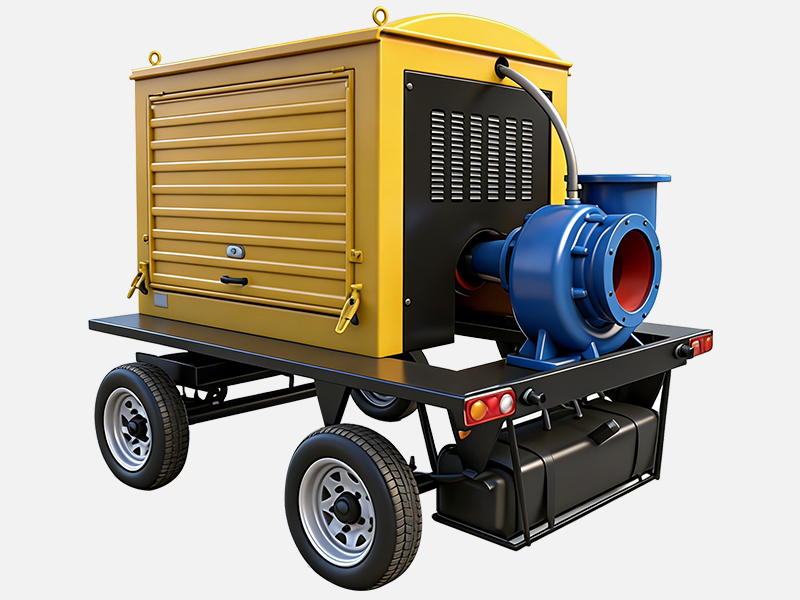

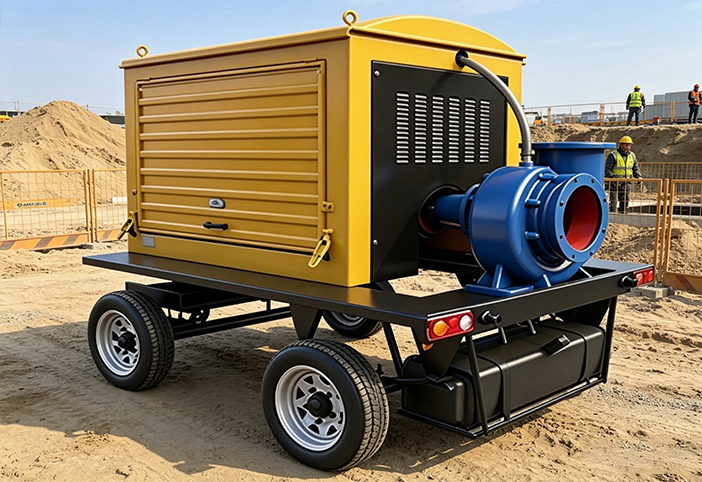

Diesel Engine Mixed Flow Mobile Pump Truck
HW type mixed-flow pump is a horizontal, single-stage, single-suction, cantilevered mixed-flow pump with front and rear valve opening.
It is suitable for conveying clean water or other liquids with similar physical and chemical properties to water, provided the temperature of the conveyed liquid does not exceed 50℃.
It is widely used in agricultural irrigation and drainage, industrial and urban water supply and drainage applications.
Simple structure, reliable operation, easy assembly and disassembly, small size, light weight, large flow rate, and high efficiency.
Two types of drives are available: direct drive and belt drive. Commonly used power sources include electric motors and diesel engines.
Viewed from the pump inlet, the impeller rotates counterclockwise (clockwise for the 650HW-7S).
Standard HW-S type pumps are designed, manufactured, and inspected according to GB/T13008 and JB/T6667 standards.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 6inch | 180-223m³/h | 5-12.5m | 4-11KW | 1450-2900r/min |
| 8inch | 360-500m³/h | 5-12.5m | 7.5-30KW | 1200-1600r/min |
| 10inch | 444-720m³/h | 5-14.3m | 11-37KW | 980-1600r/min |
| 12inch | 581-1035m³/h | 3.9-12.5m | 11-55KW | 730-1300r/min |
| 14inch | 745-1000m³/h | 4.4-8m | 15-30KW | 730-980r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
