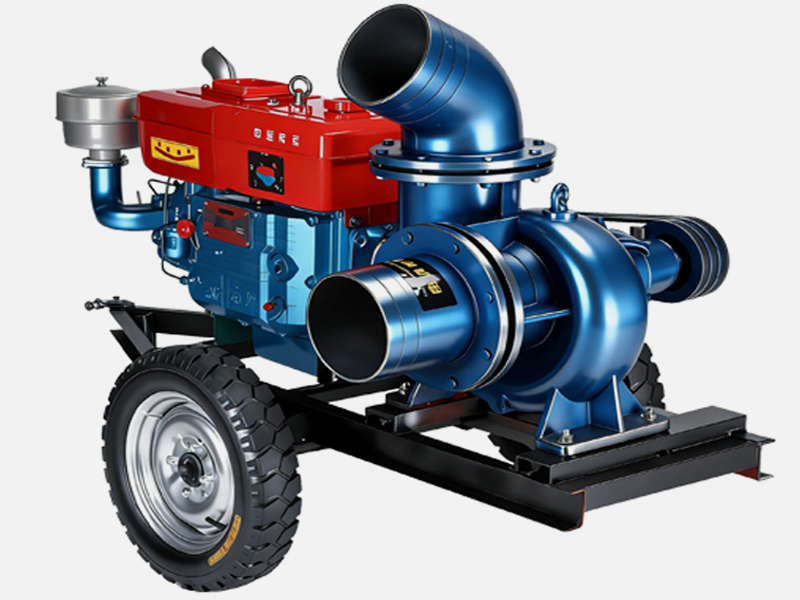

Single Cylinder Diesel Engine Mixed-flow Pumps
HRZL-CD/HW single-cylinder diesel engine mixed flow pump, driven by diesel engine pulley, is a horizontal, single-stage, single-suction volute pump. It can transport clean water and liquids with similar physical and chemical properties to water, with the temperature of the transported liquid not exceeding 50°C, and is widely used in farmland irrigation, factory drainage, urban drainage and other scenarios.
There are direct transmission and variable speed transmission. Commonly used power sources are motors and diesel engines.
It can meet the problem of difficulty in getting water without power supply outdoors, and can be directly driven by diesel engine.
Convenient and labor-saving, just turn the key to use, eliminating the need for laborious hand cranking.
The pump body is made of lightweight and wear-resistant materials, with a long service life and low failure rate.
According to the water circulation design, the water flow is unobstructed, the output flow is larger, the head is higher, and the operation is smoother.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 6inch | 180-223m³/h | 5-12.5m | 4-11KW | 1450-2900r/min |
| 8inch | 360-500m³/h | 5-12.5m | 7.5-30KW | 1200-1600r/min |
| 10inch | 444-720m³/h | 5-14.3m | 11-37KW | 980-1600r/min |
| 12inch | 581-1035m³/h | 3.9-12.5m | 11-55KW | 730-1300r/min |
| 14inch | 745-1000m³/h | 4.4-8m | 15-30KW | 730-980r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
Welcome, contact us!
