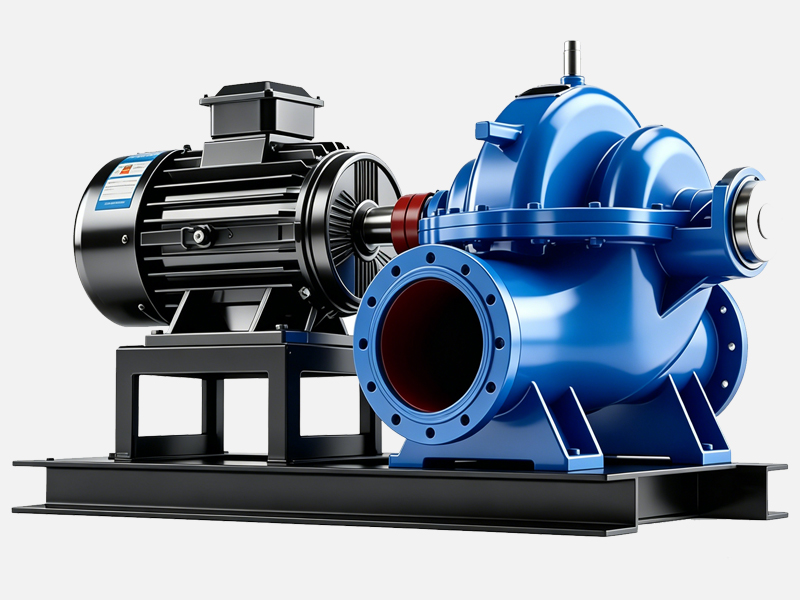

HRZL-OS Double Suclion Split Pump
HRZL-OS motor pump is an axially split volute centrifugal pump, suitable for liquid transportation scenarios in water supply to water plants, air conditioning circulating water transportation, building water supply and drainage, irrigation operations, drainage pump station operation, power station water supply, industrial water supply system, fire protection system and shipbuilding.
UL Listed/FM Approved/NFPA-20 Design
Can operate in power-off conditions.
Fully operational within 15 seconds after the start signal.
Remote control via mobile phone App.
The material can be cast iron or stainless steel. The impeller can be made of bronze.
Its performance and technical standards conform to the national standard GB6345-2006.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 25-326m³/h | 8.9-125m | 7.5-200KW | 1450-2900r/min |
| 6inch | 96.3-660m³/h | 9.3-121m | 15-250KW | 1450r/min |
| 8inch | 23-965m³/h | 14-167m | 37-450KW | 1450r/min |
| 10inch | 350-1450m³/h | 16-131m | 75-315KW | 1450r/min |
| 12inch | 390-2350m³/h | 9-174m | 37-1120KW | 1450r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
