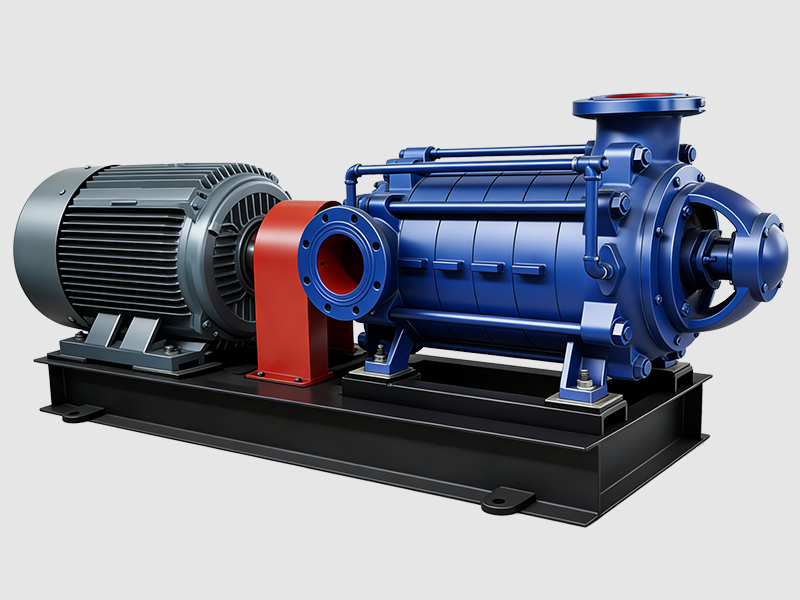

Multistage Centrifugal Pump
HRZL-DA1 (DW1) horizontal multistage centrifugal pump is a single-suction multistage segmented structure, used to transport clean water and liquids with similar physical and chemical properties to water. Its head range is 13 - 333m, flow rate is 12.6 - 180m³/h, and the temperature of the transported liquid is ≤80℃.
It is suitable for mine drainage, factory and urban water supply. The DA1 pumps currently produced include five specifications: DA1-50, DA1-80, DA1-100, DA1-125, and DA1-150.
Pressure and flow rates can be customized to meet specific needs.
Diameter size: outlet size ranges from 40mm to 250mm.
A wide range of materials are available: cast iron, stainless steel, etc. or customized according to customer requirements.
We use wear-resistant diaphragm couplings or pin couplings.
Multiple drive modes to meet different space requirements on site: DC, CL, CR, CV, ZV, HC.
Adopt soft start, frequency conversion and soft connection speed regulation to save energy and reduce consumption, protect equipment and improve efficiency.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 18-180m³/h | 26-121m | 4-75KW | 2950r/min |
| 6inch | 18-m³/h | 39-182m | 5.5-110KW | 2950r/min |
| 8inch | 18-m³/h | 52-242m | 7.5-160KW | 2950r/min |
| 10inch | 18-m³/h | 65-303m | 11-200KW | 2950r/min |
| 12inch | 18-m³/h | 78-366m | 11-200KW | 2950r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
Welcome, contact us!
