HRZL-IS

HRZL-ZJQ

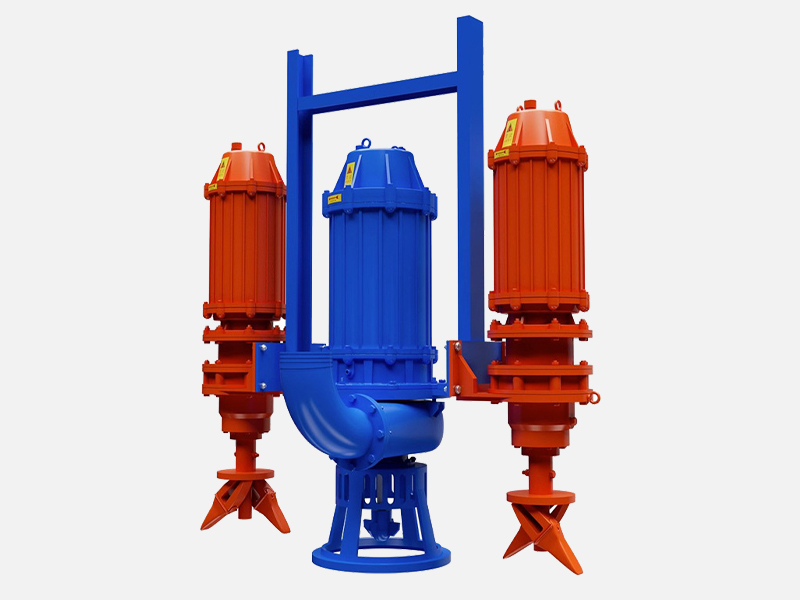

Submersible Slurry Pump

  • Own production and certified test protocol.
  • Large inventory and fast delivery.
  • Over 10 years of OEM/ODM manufacturing support.
Flow 50-13300m³/h
Head 2.5-1230m
Power 4-630KW

Description

HRZL-ZJQ submersible slurry pump, the motor and pump are coaxially immersed in the medium, specially designed for conveying liquid containing solid particles such as sand, gravel, coal slag, etc., widely used in metallurgy, mining, thermal power plants, and is an ideal replacement for traditional mud pumps. The bottom stirring impeller can make the sedimented mud turbulent, and high-concentration conveying can be carried out without assistance. The unique seal prolongs the service life, the motor has overheat protection, and protection such as near-water detection can be added as needed, which can operate safely in harsh environments.

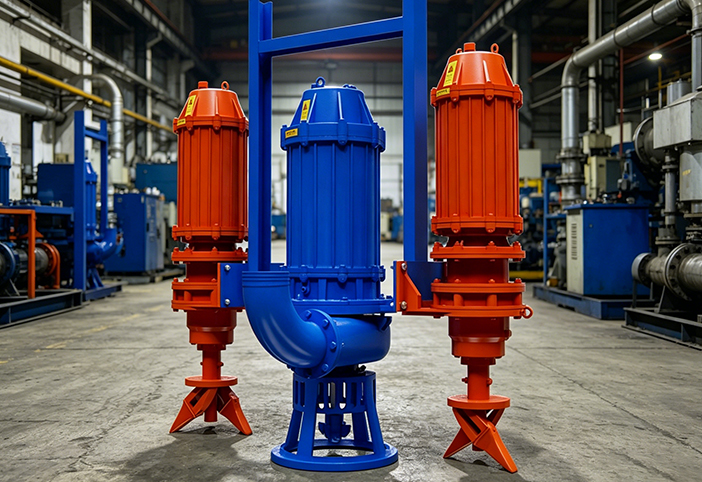

HRZL Pump Factory

Performance advantages

01. Enhanced Seal Protection

Dry pump structure and mechanical seal protection can effectively prevent water and impurities.

02. Built-In Agitator for Sludge Mixing

There is a stirring impeller to stir the sludge for easy extraction.

03. Wear-Resistant & Non-Clogging Design

The main parts are wear-resistant and corrosion-resistant, will not clog, have strong sewage discharge, and can pass large particles.

04. Efficient Sludge Suction Performance

It is not limited by the sludge suction stroke, the slag suction efficiency is high, and the dredging is more thorough.

05. Lower Investment Cost

No auxiliary vacuum pump is required, and the investment is cheaper.

06. Adjustable Slurry Concentration Control

The stirring impeller controls sedimentation, and the submersible adjusts the concentration, giving you free control.

Specifications

Size Flow (m³/h) Head (m) Power (kw) Speed range (r/min)
4inch80-200m³/h12-80m7.5-90KW1450-2900r/min
6inch200-450m³/h16-60m22-110KW1450r/min
8inch300-500m³/h25-35m45-90KW1450r/min
10inch900m³/h16m90KW980r/min
12inch1200m³/h25m160KW980r/min

We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
