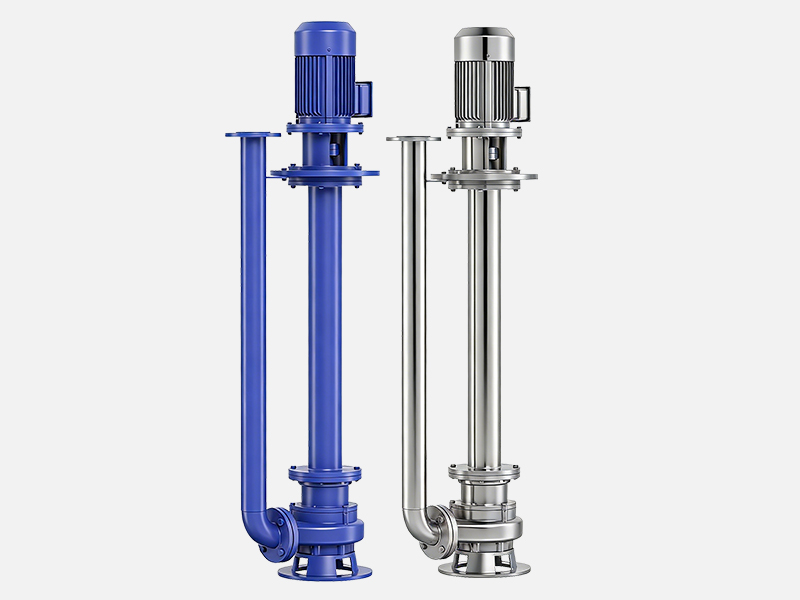

Vertical Sewage Pump

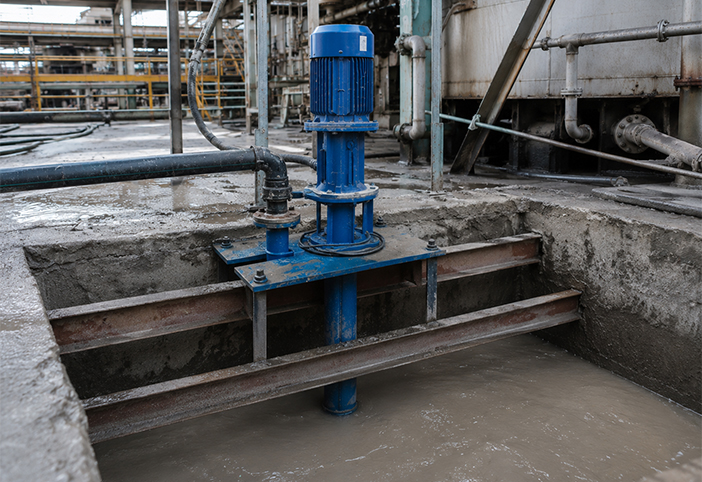

LW submersible pump is a centrifugal pump whose pump body is partially or completely immersed in liquid, mainly used to transport various media, such as clean water, sewage, corrosive liquids, etc. The submersible pump is designed to operate below the liquid level and is usually installed in a storage tank, well or pit. Its structural characteristics make it particularly suitable for applications that require deep liquid levels or large liquid level fluctuations.
The impeller has a large flow channel and strong drainage capacity, which can pass solid particles and long fibers.
The rotor is balanced, the bearings are reasonably arranged, the operation is stable, the vibration and noise are low, and the service life is long.
The pump can be installed in different forms according to user requirements: single tube or double tube.
The mechanical seal adopts the latest materials and has a service life of more than 8000 hours.
Equipped with advanced thermal sensors, it can effectively protect the motor.
Automatically start and stop according to liquid level changes, without the need for special personnel to watch.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 100m³/h | 8-44m | 5.5-30KW | 1440-2900r/min |
| 6inch | 150m³/h | 7-40m | 7.5-30KW | 1440-2900r/min |
| 8inch | 200m³/h | 14-25m | 18.5-30KW | 1440r/min |
| 10inch | 250m³/h | 7-28m | 5.5-30KW | 1440r/min |
| 12inch | 300m³/h | 10-40m | 18.5-75KW | 1440r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
