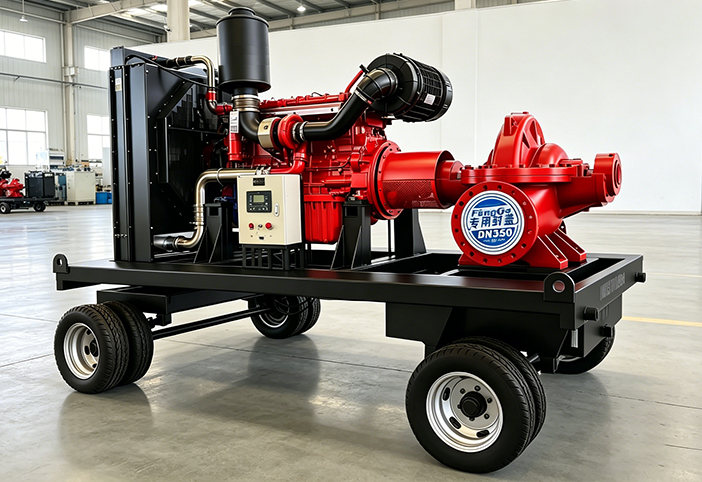

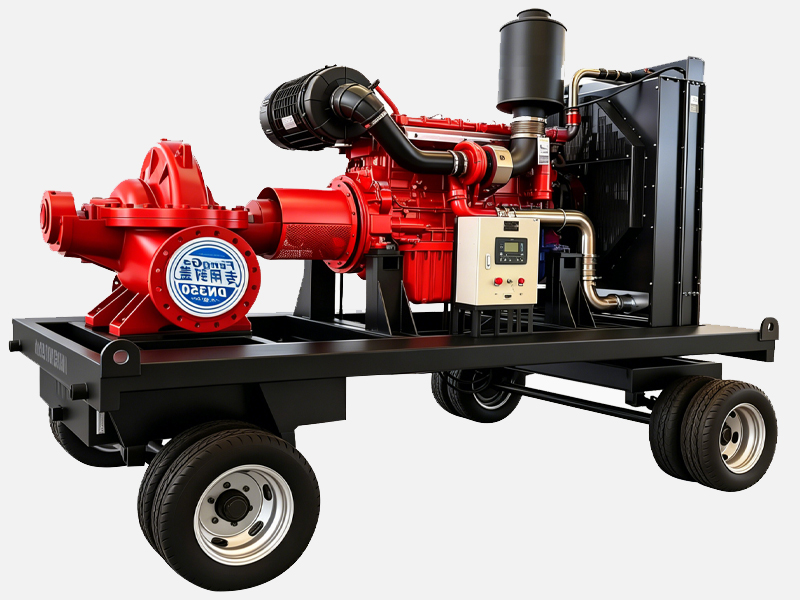

Diesel Double Suction Splitfire Pump Set
HRZL-XBD-G-SH diesel engine double suction split case pump is a single-stage, double suction, horizontal split case centrifugal pump. It can transport clean water and non-corrosive liquids, with a maximum medium temperature of 80°C. With cooling water, it can transport hot water below 130°C. Changing the materials of the sealing ring, sleeve, and impeller can transport muddy water containing sand; changing the material of the pressure-bearing parts can increase the inlet pressure.
It is suitable for factories, mines, cities, power stations, water supply, farmland irrigation and drainage, and various water conservancy projects. Copper impellers and copper sealing ring pumps can be provided on demand for transporting finished oil and other media.
UL Listed/FM Approved/NFPA-20 Design
Comply with ISO2548C, GB3216C and GB/T5657 standards.
Can operate in power-off conditions.
Fully operational within 15 seconds after the start signal.
Remote control via mobile app.
Available in cast iron or stainless steel. Impeller available in bronze.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 6inch | 112-180m³/h | 35-84m | 30-55KW | 2900r/min |
| 8inch | 160-351m³/h | 31-100m | 37-110KW | 2900r/min |
| 10inch | 320-576m³/h | 11-140m | 22-132KW | 1450r/min |
| 12inch | 504-972m³/h | 10-98m | 30-315KW | 1450r/min |
| 14inch | 800-1440m³/h | 10-140m | 55-710KW | 1450-1470r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
