Centrifugal Magnetic Drive Pump

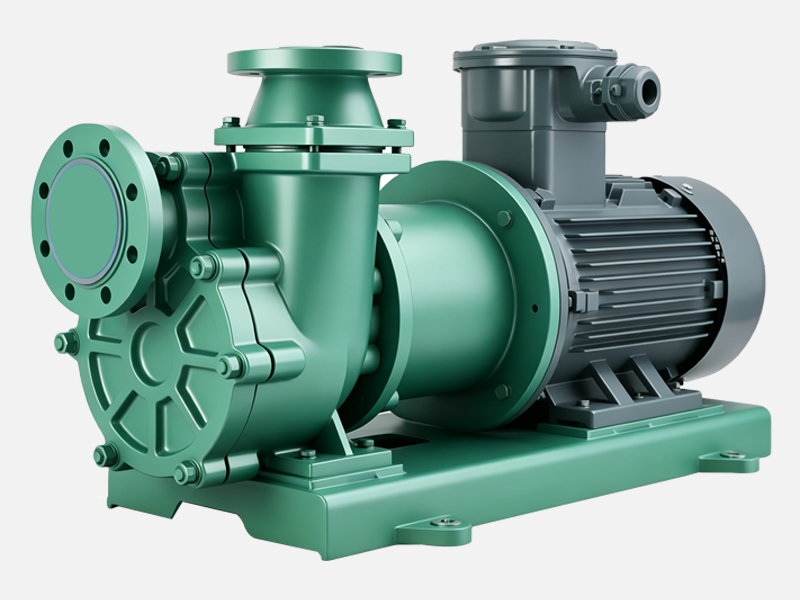

ZMD series self-priming fluoroplastic magnetic drive pump combines the advantages of both self-priming and magnetic drive pumps.
This pump utilizes magnetic coupling, achieving non-contact torque transmission without the need for dynamic seals. This design completely eliminates the shaft seal leakage problem common in traditional centrifugal pumps, while ensuring excellent self-priming performance.
All parts in contact with the media are made of corrosion-resistant fluoroplastics.
Magnetic coupling eliminates the shaft seal leakage problem common in traditional centrifugal pumps.
The fluoroplastic fluid component ensures high corrosion resistance and reliable self-priming performance.
Silicon carbide shafts offer advantages such as corrosion resistance, wear resistance, high temperature resistance, and aging resistance.
| Model | Flow (m³/h) |
Head (m) |
Inlet (mm) |
Outlet (mm) |
Motor Power (kW) |
Liquid Density (kg/m³) |
|---|---|---|---|---|---|---|
| ZMD40-32 | 3–7.5 | 10–34 | φ40 | φ32 | 2.2–4 | 1000 |
| ZMD50-40 | 10–15 | 18–22 | φ50 | φ40 | 2.2–3 | 1000 |
| ZMD50-32 | 10–15 | 26–34 | φ50 | φ32 | 5.5 | 1000 |
| ZMD65-50 | 15–30 | 25–32 | φ65 | φ50 | 7.5 | 1000 |
| ZMD80-65 | 35–55 | 12–28 | φ80 | φ65 | 7.5 | 1000 |
Note: The listed values represent the overall performance coverage of each model series. Maximum flow and maximum head do not necessarily occur at the same operating point. Final pump and motor selection should be confirmed according to the required duty point, liquid density, temperature, viscosity, corrosion and installation conditions.
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
