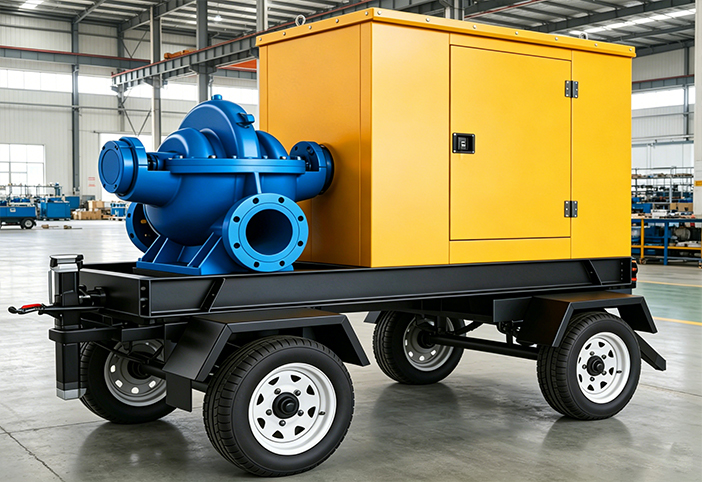

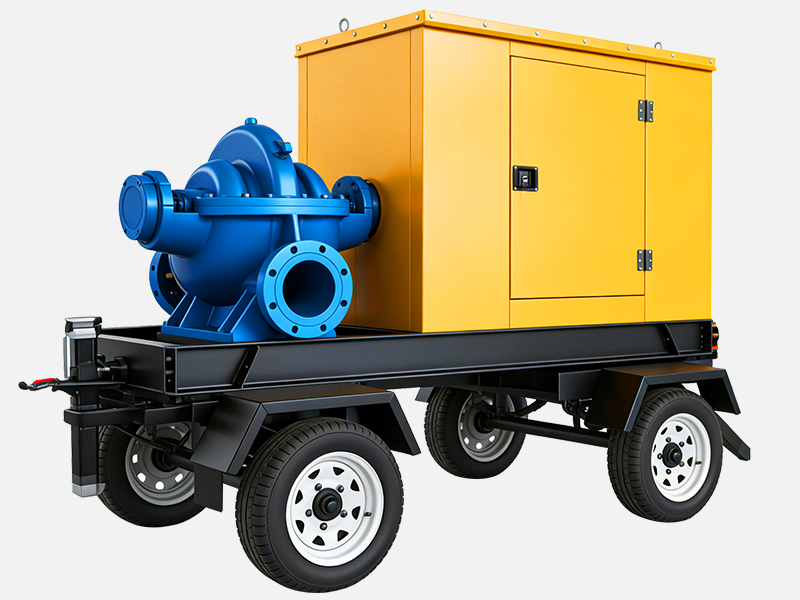

Diesel Engine Double-suction Split Pump
HRZL - TC/SH diesel double suction split case pump is a single-stage, double suction horizontal split case centrifugal pump. It is suitable for conveying clean water and non-corrosive liquids, with a medium temperature upper limit of 80°C; if cooling water is introduced into the bearing body, hot water below 130°C can be conveyed. By changing the materials of the sealing ring, sleeve, and impeller, muddy water containing sand can be conveyed; by changing the material of the pressure-bearing parts, the pump's inlet pressure can be increased.
This pump is widely used in water supply in factories, mines, cities, power stations, as well as farmland irrigation and drainage and various water conservancy projects. Pumps equipped with copper impellers and copper sealing rings can also be provided according to user needs for conveying finished oil and other media.
TC/SH pumps are highly efficient and are also suitable for a wide range of flow rates and small power motors, with excellent energy-saving effects.
TC/SH pumps are specially designed with excellent anti-cavitation performance. Compared with traditional double-suction pumps, it saves costs.
Reduce noise, vibration, more economical and environmentally friendly, and extend the service life of the equipment.
The pump body is separated into upper and lower parts. During maintenance, only the upper part needs to be removed without removing the pipes, which is convenient and quick.
It can be made of a combination of multiple materials according to different needs, and has a wider range of applications.
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 6inch | 112-180m³/h | 35-84m | 30-55KW | 2900r/min |
| 8inch | 160-351m³/h | 31-100m | 37-110KW | 2900r/min |
| 10inch | 320-576m³/h | 11-140m | 22-132KW | 1450r/min |
| 12inch | 504-972m³/h | 10-98m | 30-315KW | 1450r/min |
| 14inch | 800-1440m³/h | 10-140m | 55-710KW | 1450-1470r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
