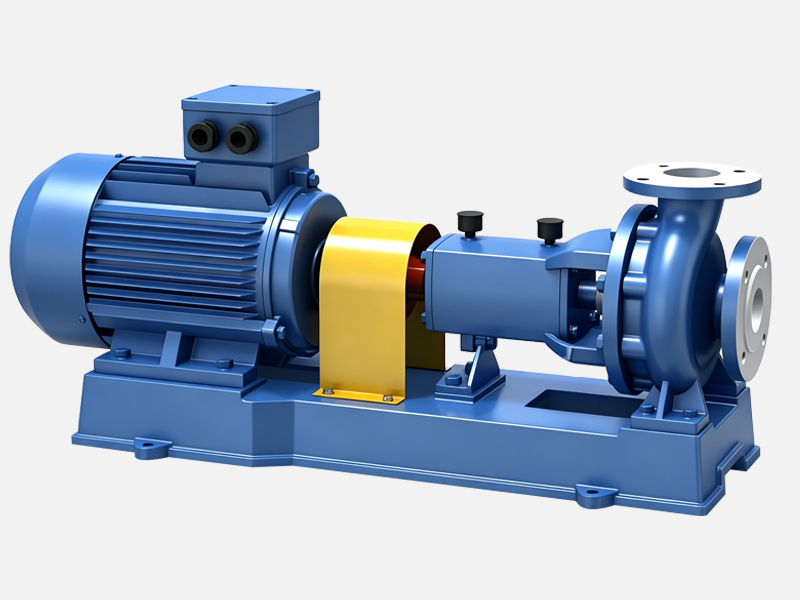

IH Chemical Pump
HRZL-IH chemical centrifugal pump integrates international cutting-edge technology and user demand optimization design. The rated performance and installation dimensions comply with ISO2858 standards, and the manufacturing complies with ISO5199 standards. It is widely used in many industries such as chemical industry, smelting, and medicine. It can transport various liquids such as acids, alkalis, oils, and toxic liquids, especially suitable for the transportation of leaky, flammable and explosive liquids.
Fluorine-lined pump housing: wet material F46, special reinforced plastic connection, reliable quality.
Closed impeller: fluoroplastic alloy, rare earth internal magnetism, stable operation, no dripping.
External magnetism, rare earth: internal magnetism, never demagnetized.
Full isolation fence: plastic structure, no magnetic eddy current phenomenon.
| Model | Flow (m³/h) |
Head (m) |
Speed (r/min) |
Motor Model and Power |
|---|---|---|---|---|
| CZ32-160 | 7.5–15 | 30–34.5 | 2900 | Y112M-2 / 4 kW |
| CZ32-200 | 7.5–15 | 48–51.8 | 2900 | Y132S2-2 / 7.5 kW |
| CZ32-250 | 7.5–15 | 78.5–82 | 2900 | Y160M2-2 / 15 kW |
| CZ40-160 | 15–30 | 30–34.2 | 2900 | Y132S2-2 / 7.5 kW |
| CZ40-200 | 15–30 | 47.6–53.2 | 2900 | Y160M1-2 / 11 kW |
| CZ40-250 | 15–30 | 78.4–81.2 | 2900 | Y180M-2 / 22 kW |
| CZ40-315 | 15–30 | 124–126.8 | 2900 | Y200L2-2 / 37 kW |
| CZ50-160 | 30–60 | 28.4–36 | 2900 | Y160M1-2 / 11 kW |
| CZ50-200 | 30–60 | 45.2–55.2 | 2900 | Y160L-2 / 18.5 kW |
| CZ50-250 | 30–60 | 75–84 | 2900 | Y200L2-2 / 37 kW |
| CZ50-315 | 30–60 | 123–128 | 2900 | Y280S-2 / 75 kW |
| CZ65-160 | 60–120 | 28–37 | 2900 | Y180M-2 / 22 kW |
| CZ65-200 | 60–120 | 44–56 | 2900 | Y200L2-2 / 37 kW |
| CZ65-250 | 60–120 | 74–88 | 2900 | Y250M-2 / 55 kW |
| CZ65-315 | 60–120 | 119–132 | 2900 | Y280S-2 / 75 kW |
| CZ80-160 | 130–160 | 16–26 | 2900 | Y180M-2 / 22 kW |
| CZ80-200 | 110–150 | 26–38 | 2900 | Y225M-2 / 45 kW |
| CZ80-250 | 130–180 | 47–75 | 2900 | Y280M-2 / 90 kW |
| CZ80-315 | 150–200 | 75–130 | 2900 | Y315M1-2 / 132 kW |
| CZ100-200 | 150–240 | 41–61 | 2900 | Y250M-2 / 55 kW |
| CZ100-250 | 120–240 | 73–90 | 2900 | Y280M-2 / 90 kW |
| CZ100-315 | 120–240 | 120–132.5 | 2900 | Y315M1-2 / 132 kW |
Note: Motor selections are based on a liquid specific gravity of 1.35. Actual motor power and pump configuration should be confirmed according to the required flow, head, liquid density, temperature, corrosion, viscosity and site operating conditions.
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
Welcome, contact us!
