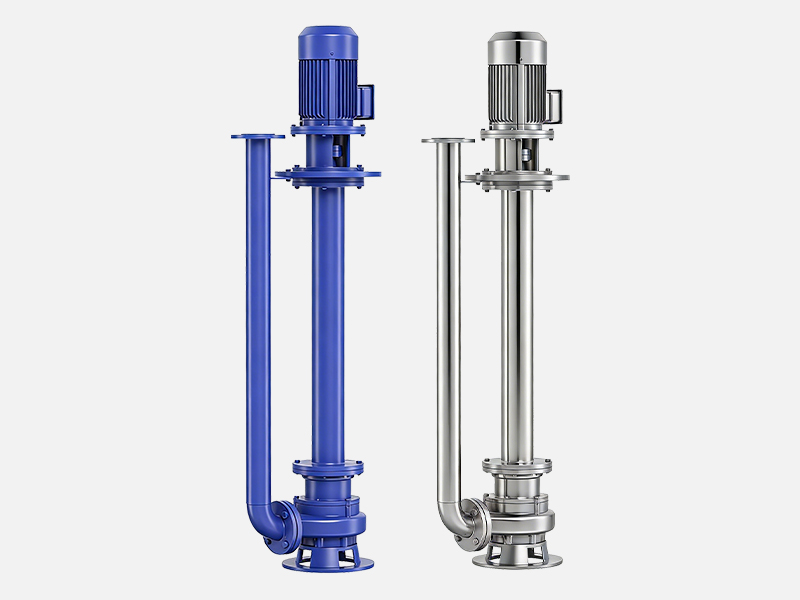

Vertical Chemical Pump
The Vertical Submerged Chemical Pump is designed for transferring corrosive chemicals and industrial liquids directly from tanks, pits and process vessels. Its mechanical seal-free design reduces leakage risk and maintenance, while optional impeller configurations allow reliable handling of both clean liquids and fluids containing solid particles or short fibers.
Eliminates the mechanical seal commonly used in conventional sump pumps, reducing seal wear, maintenance frequency and operating costs.
Designed for transferring corrosive acidic and alkaline liquids in chemical processing and other demanding industrial applications.
An open double-balanced impeller option allows the pump to handle liquids containing solid particles and short fibers with stable, clog-resistant operation.
For clean liquids, the centrifugal double-balanced impeller provides efficient operation with reduced vibration and noise.

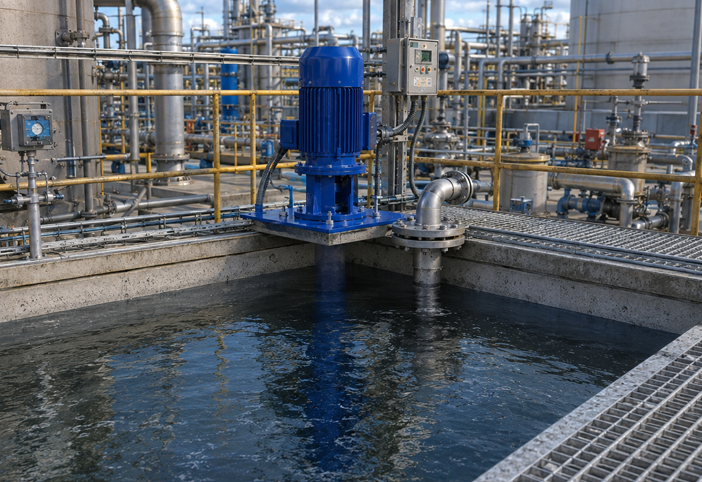

The vertical pump can be mounted directly on the storage tank or vessel, eliminating the need for additional floor space and helping simplify the installation layout.
Without a conventional mechanical seal exposed to frequent wear, the pump can reduce routine maintenance requirements and improve operating availability.
| 型号 |
流量 (m³/h) |
扬程 (m) |
电机功率 (kW) |
|---|---|---|---|
| 25FY | 3.27–3.6 | 13–41 | 1.5–5.5 |
| 40FY | 6.55–7.2 | 13–40 | 1.5–5.5 |
| 50FY | 13.1–14.4 | 13–40 | 3–7.5 |
| 65FY | 26.2–28.8 | 13–40 | 3–11 |
| 80FY | 49.1–54 | 12–38 | 7.5–18.5 |
| 100FY | 91.8–100.8 | 18–37 | 15–22 |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
