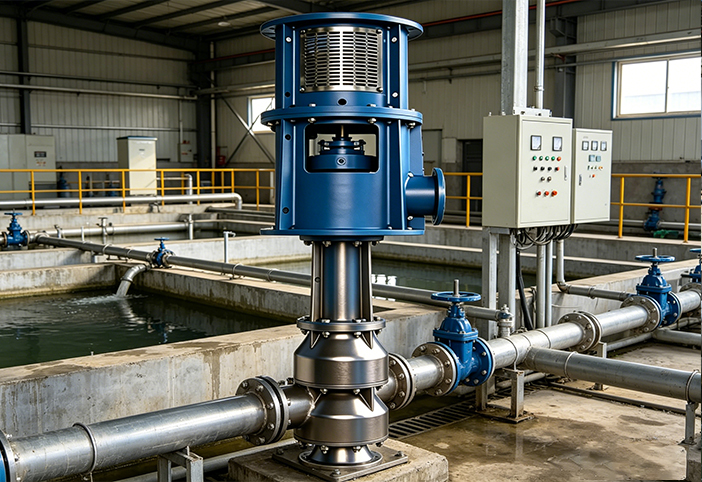

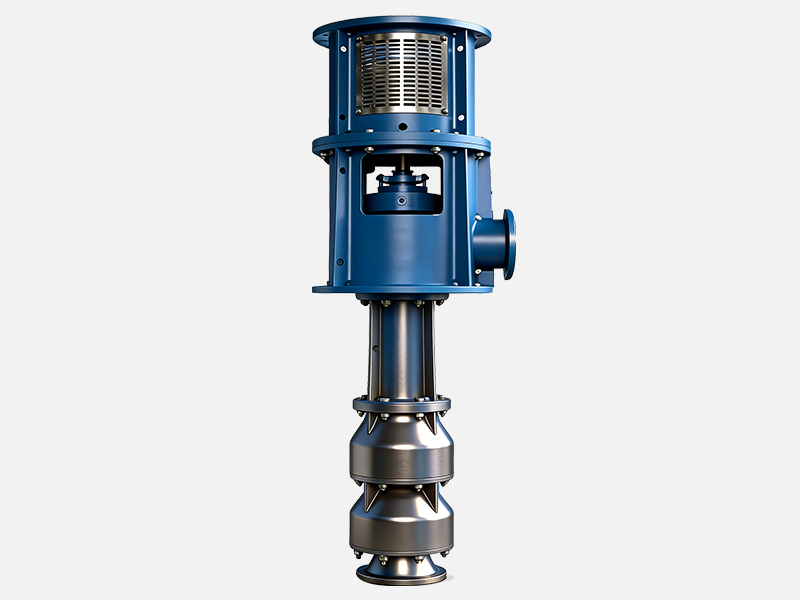

Long Shaft Axial Flow Pump
LC submersible long-axis deep well pump, developed by our company, optimizes water conservancy and structure. Anti-corrosion materials can be replaced as needed, and the specifications of parts are consistent. After strict testing, it ensures long-term efficient operation, and the maximum diving depth exceeds 150 meters. The vertical design occupies a small area and does not require connection to the water inlet.
Wear-resistant impeller and guide vane increase the service life of the pump.
A filter with appropriate aperture is installed at the pump inlet to prevent impurities from entering the pump and reduce inlet loss.
The impeller uses a balance hole to balance the axial force and is equipped with a replaceable sealing ring to improve protection and durability.
The center shaft, water column and protective pipe of the pump are all multi-section structures, and the center shaft uses sleeve coupling technology to reduce vibration.
The impeller and guide vane can be made into multiple stages to adapt to different heads.
The pump can be equipped with a monitoring system to achieve automatic start, alarm and stop. Large pumps are equipped with an automatic exhaust system.
| Size | Flow (m³/h) | Pressure | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 3-160L/S | 0.4Mpa | 3-110KW | 1450-2900r/min |
| 6inch | 3-150L/S | 0.6Mpa | 4-110KW | 1450-2900r/min |
| 8inch | 10-160L/S | 0.8Mpa | 5.5-220KW | 1450-2900r/min |
| 10inch | 10-160L/S | 1Mpa | 5.5-250KW | 1450-2900r/min |
| 12inch | 3-160L/S | 1.2Mpa | 7.5-315KW | 1450-2900r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
