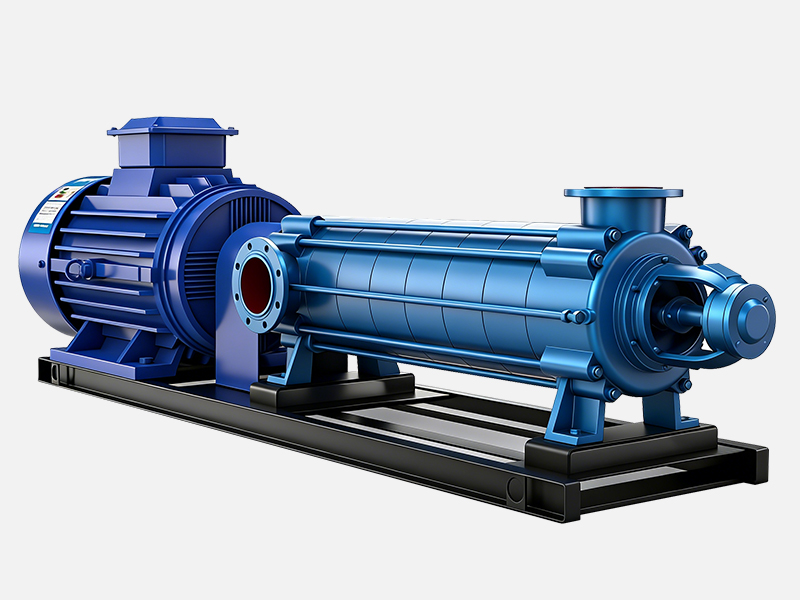

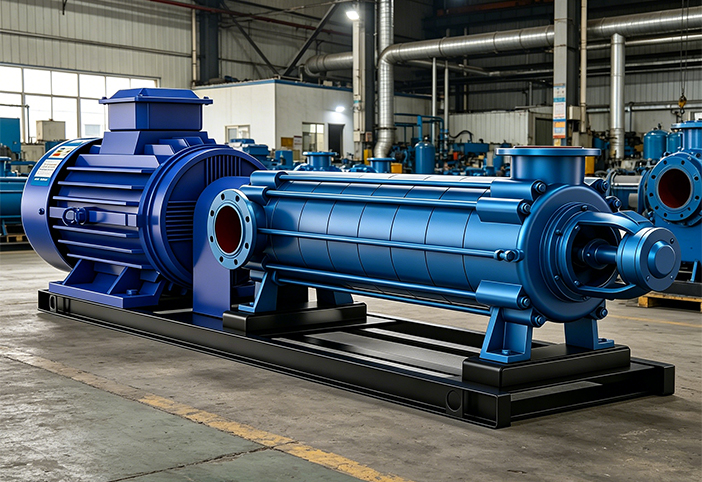

Abrasion-Proof Multistage Centrifugal Pump
HRZL-D/MD wear-resistant multistage centrifugal pump has an advanced and reasonable structure,and has the advantages of high efficiency and energy saving, strong cavitation resistance, low vibration,stable and reliable operation, and durability. It is suitable for conveying clean water below 40°C and other liquids with physical and chemical properties similar to water.
It is not only an ideal choice for mine drainage, but also widely used in petroleum, chemical industry, metallurgy, factory and urban water supply and drainage.The pump can be driven by an electric motor or a diesel engine through an elastic coupling. When viewed from the prime mover end, the pump rotates clockwise.
Designed in accordance with the capacity and dimensions specified in the international standard ISO2858.
Our expertise lies in the use of wear-resistant diaphragm couplings or pin couplings to improve durability.
Solid cast iron, resilient cast steel, bright stainless steel, and timeless elegance of bronze.
The mechanical seal uses multiple sealing points, which almost eliminates any leakage problems, and its powerful performance makes it far superior to previous products.
The motor is equipped with a rain cover, so the pump can be placed outdoors, eliminating the pump room and saving costs.
The pump rotor has low wind resistance, smooth operation, low vibration, low noise, and long life
| Size | Flow (m³/h) | Head (m) | Power (kw) | Speed range (r/min) |
|---|---|---|---|---|
| 4inch | 50-131m³/h | 143-1082m | 90-500KW | 2980r/min |
| 6inch | 120-180m³/h | 198-1404m | 160-900KW | 2980r/min |
| 8inch | 160-240m³/h | 108-1922m | 110-710KW | 2980r/min |
| 14inch | 245-420m³/h | 134-960m | 250-1600KW | 1490r/min |
| 16inch | 280-480m³/h | 184-1104m | 315-2000KW | 1490r/min |
We provide OEM and ODM services, and can customize specifications, colors and sizes to find your best solution.
Customer Service
Customization of specifications, colors and OEM products.
We provide DDP (Delivered Duty Paid) service. Most equipment is in stock for fast delivery.
Our testing facility can handle large-scale tasks. Pump models for wet and dry tank operation up to 400 HP.
